Product Details
＋

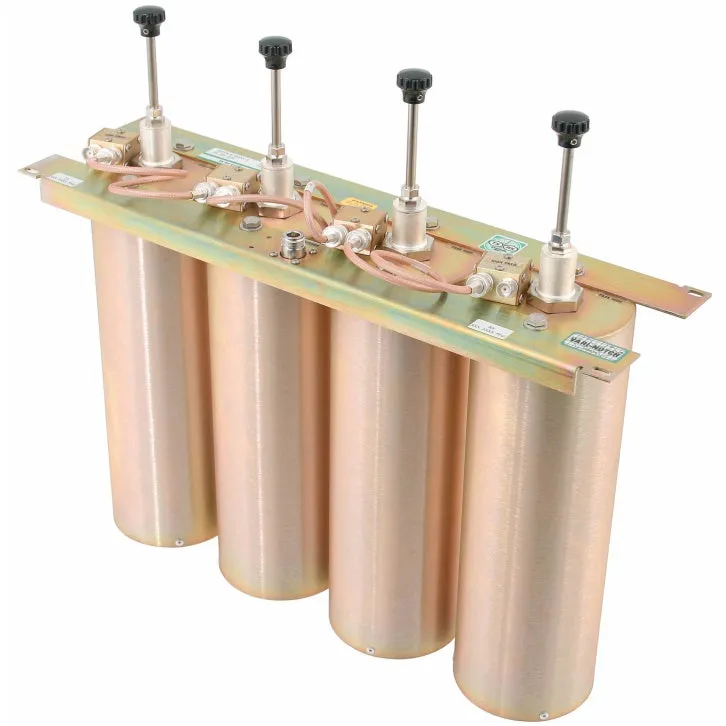

At UHF, the TX RX Vari-Notch® design is the most commonly used. Vari-Notch® provides a low-loss pseudo-bandpass characteristic that can exist very close to a deep notch. Proven low-loss and low-noise construction techniques are used such as welded cavity construction; silver-plated loops, Alballoy®-plated integrated loop plates and connectors; as well as a unique fingerstock-free high-conductivity silver-plated tuning probe. Our cavities are constructed of hardened aluminum which, unlike most copper cavities, resists denting and associated detuning.
- All high RF-current components silver-plated for highest performance
- Vari-Notch® design provides low loss and high isolation.
- 406-430 MHz, 3.0 MHz Minimum Freq Separation
- 442-450 MHz, 5.0 MHz Minimum Freq Separation
- 450-470 MHz, 5.0 MHz Minimum Freq Separation
- Power Rating 350 W
- 80 dB Isolation each model
- 0.8 dB Insertion Loss (406-430 MHz)
- 0.6 dB Insertion Loss (442-450 MHz)
- 0.6 dB Insertion Loss (450-470 MHz)
- 4 Cavities in 19" 3U rack configuration
- 4" Diameter cavities
- 1.3:1 VSWR
- Ω 50 Impedance
- Dimensions: 5.25” x 19” x 3”/-9” (133 x 483 x 76/-229 mm)
- 406-430 N Type Tx-Rx and Antenna Port Connectors
- 442-450 N Type Tx-Rx and Antenna Port Connectors
- 450-470 N Type Tx-Rx and Antenna Port Connectors
- -40 to 80 °C Temperature Range
- 14 lbs
Sales Tax is charged for the following states: Missouri, New York, California, Illinois, and Texas
Chat with us online or give us a call us at (816)-532-8451 if you have any questions.
These duplexers have a lead of 4 weeks as they are custom built and tuned
