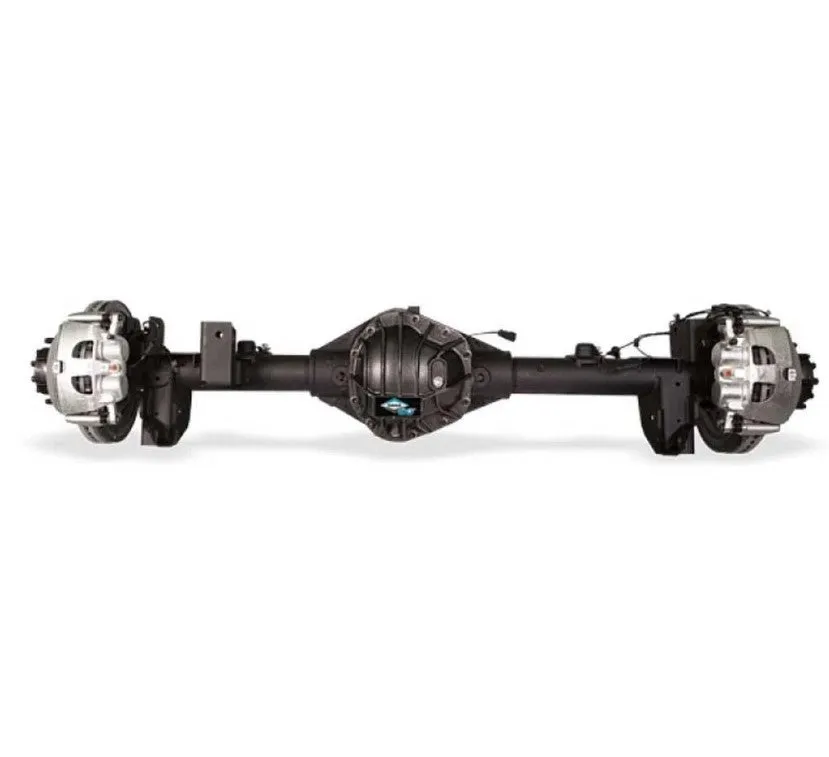

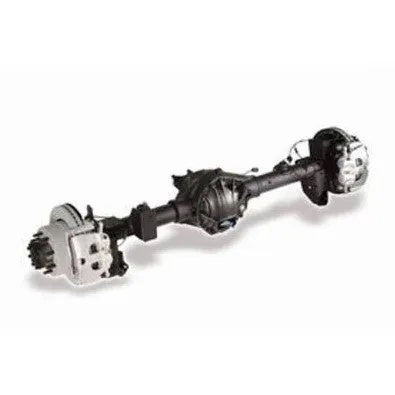

Ultimate Dana 60™ - Rear Axle Assembly 5.38 Ratio

As Jeep owners modify their axles for even better performance over rocks, across sand, and through mud, Dana has taken notice. That is why Ultimate Dana 60™ rear axles are built with the innovations that give you the confidence to take on the toughest terrain. Get the performance and dependability of Ultimate Dana 60™ for your Jeep Wrangler!

When you’re taking on the roughest terrain, you need the biggest, strongest axles available. You need the Ultimate Dana 60™ axle. Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, the Ultimate Dana 60™ axles can withstand the extreme punishment of extreme off-roading. Built for superior strength inside and out, these axles have what it takes to overcome even the toughest obstacles.

FEATURES

• Full-float design
• Vehicle weight carried by housing instead of shaft
• Delivers greater load-carrying ability
• 35 spline SAE-4340 nickel chromoly steel axle shafts
• Selectable electronic locking differentials
• Upgraded heavy-duty brakes with plug-and-play ABS system
• Massive vented rotors (358mm O.D.) and dual piston calipers for optimal braking power and optimal cooling
• Genuine Made in the USA Spicer 9¾" (248 mm) ring and pinion gear inside
• Spicer® 1350 Strap-style/Half-round end yoke
• Axle tubes: 3½" outside diameter/.390" wall thickness
• Heavy-duty 8 x 6.5" wheel bolt pattern
• Heavy-duty brackets
• Nodular iron diff cover

SPECIFICATIONS

• Manufacturer: Dana Spicer
• Part Number: 10005942
• Brakes:Disc Brake Upgrade
• Wheel Bolt Pattern:8 On 6.5 Inches
• Traction Device:Factory Electric Locker
• Fitment:Universal Fit
• Housing Type:07-Up Jeep JK Dana 60
• Front Or Rear:Rear
• Axle Spline:35 Splines
• Gear Ratio:5.38

INCLUDES

• (1) Spicer Ultimate Dana 60 Rear Axle Assembly 5.38 Gear Ratio
