The FTSs Touch | Nano Jacketed Tank Upgrade kit has been designed to leverage components from our home brewing FTSs Touch line in an effort to provide a low-cost solution to pair a 1, 2, or 3.5 BBL Nano Jacketed Unitank and Nano Jacketed Brite Tanks with one of our 3/8 HP or 3/4 HP glycol chillers.

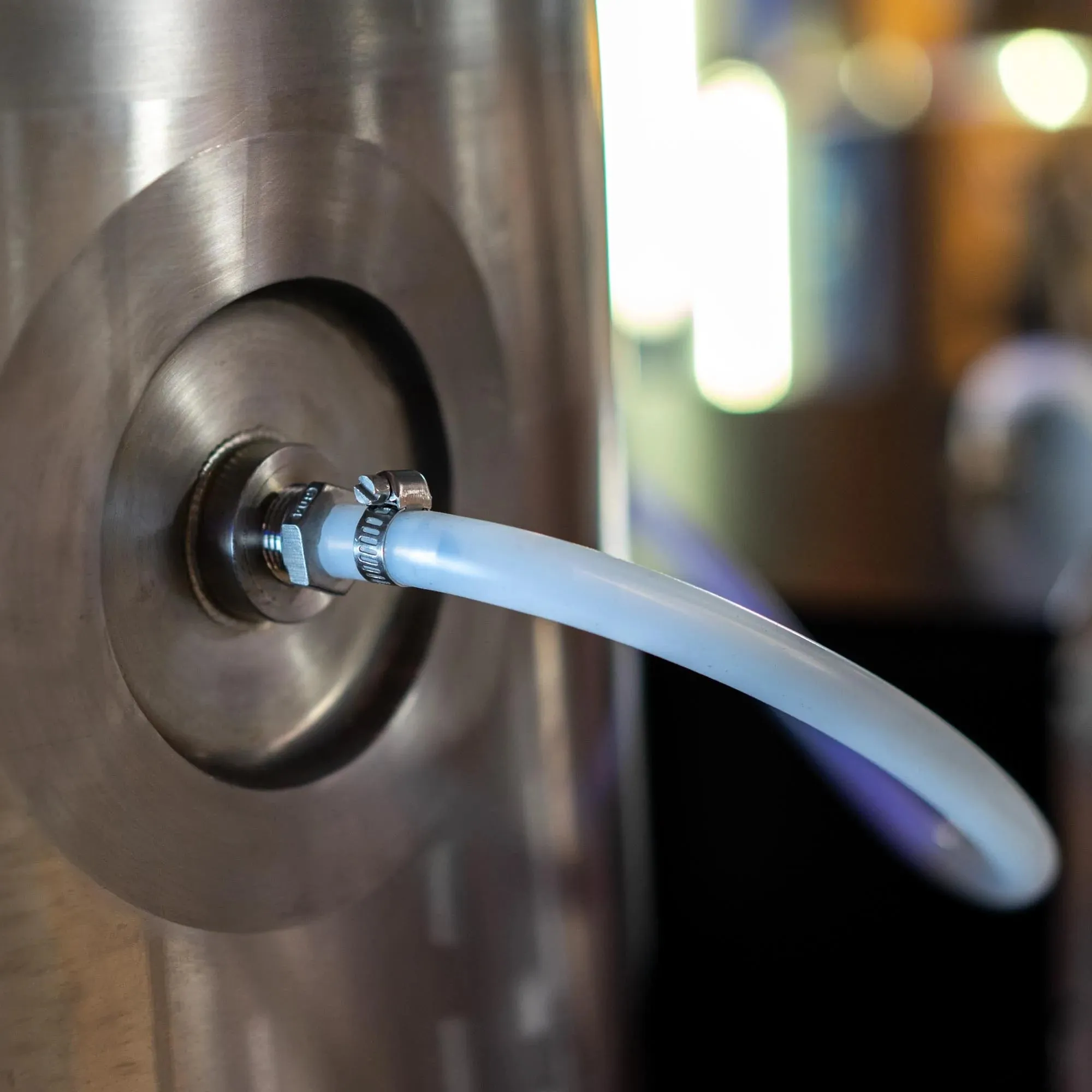

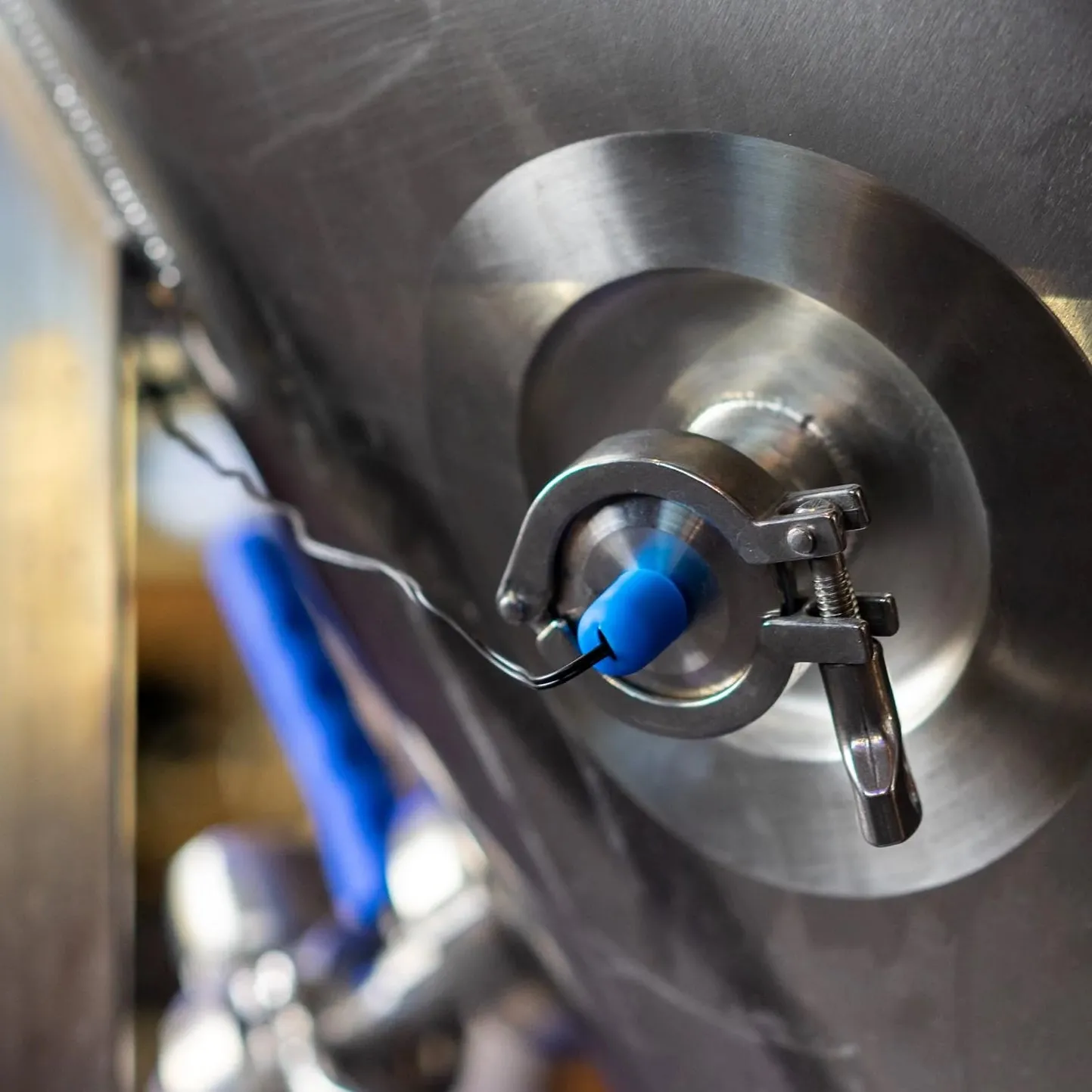

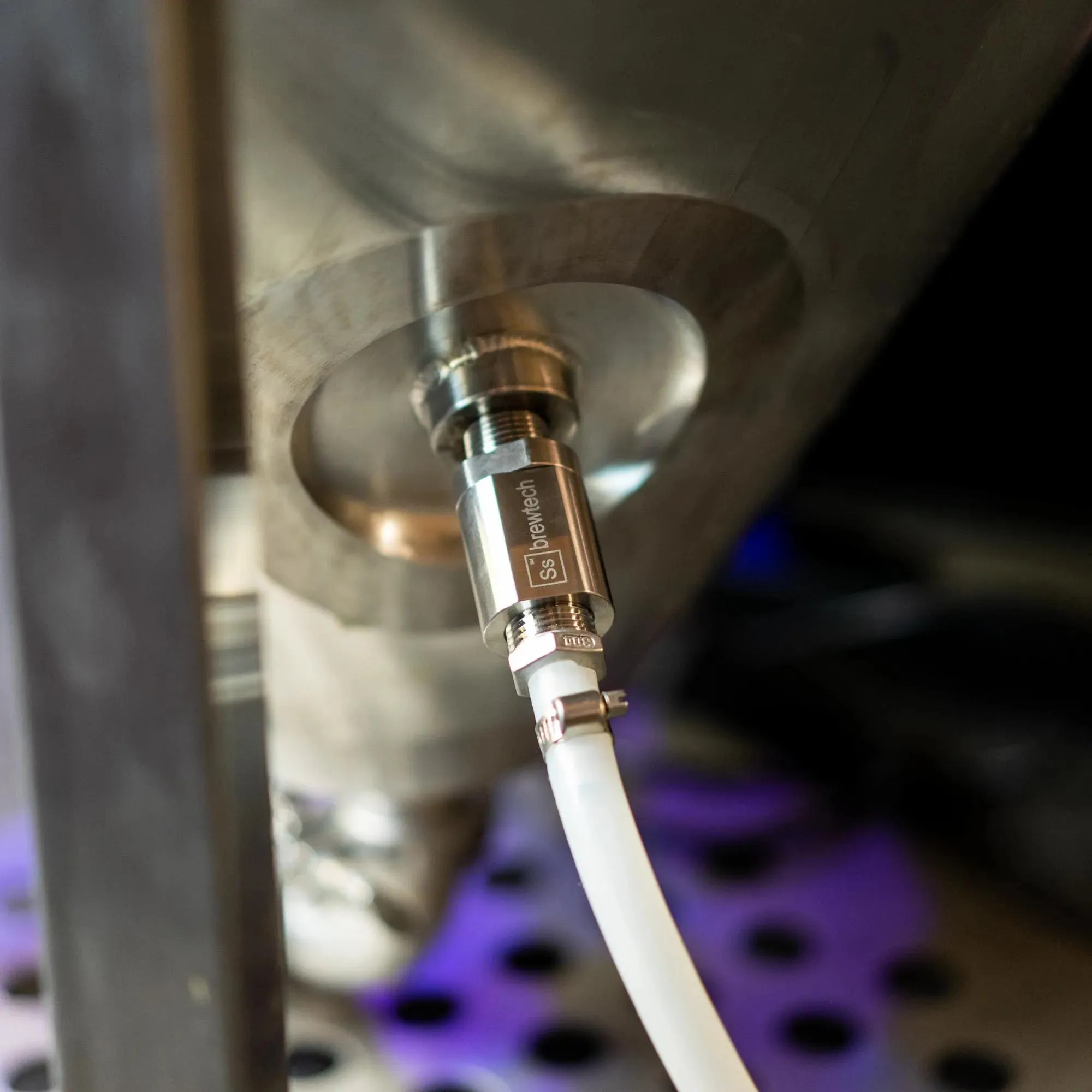

This system features a custom TC thermowell adapter, along with a silicone insert to adapt the temperature probe from an FTSs Touch controller to the welded-in sleeved thermowell port on our line of Nano Jacketed Tanks. In addition, a custom-designed low-pressure open silicone check valve is included to prevent backflow to the chiller's reservoir when glycol is not flowing. The kit includes 1/2" NPT to 3/8" barbs to adapt the glycol ports for use with our standard FTSs Touch pump.
Since most Nano Jacketed Tanks are set up for use with a pressurized loop glycol system typically found in commercial breweries, this kit offers a Nano brewery an affordable, easy-to-setup alternative to more elaborate or expensive installations. Everything is included to interface a single Nano Jacketed Tank between an FTSs Touch and Ss Glycol Chiller.
Cooling options for Ss Branded Glycol Chillers
-
— Designed to be paired with our line of .
Cooling options for Pressurized Glycol Loops on Commercial Chillers
- — Designed to be paired with pressurized-loop (Non-Ss Brewtech) commercial glycol systems.
Not recommended for 5bbl & Larger Tanks

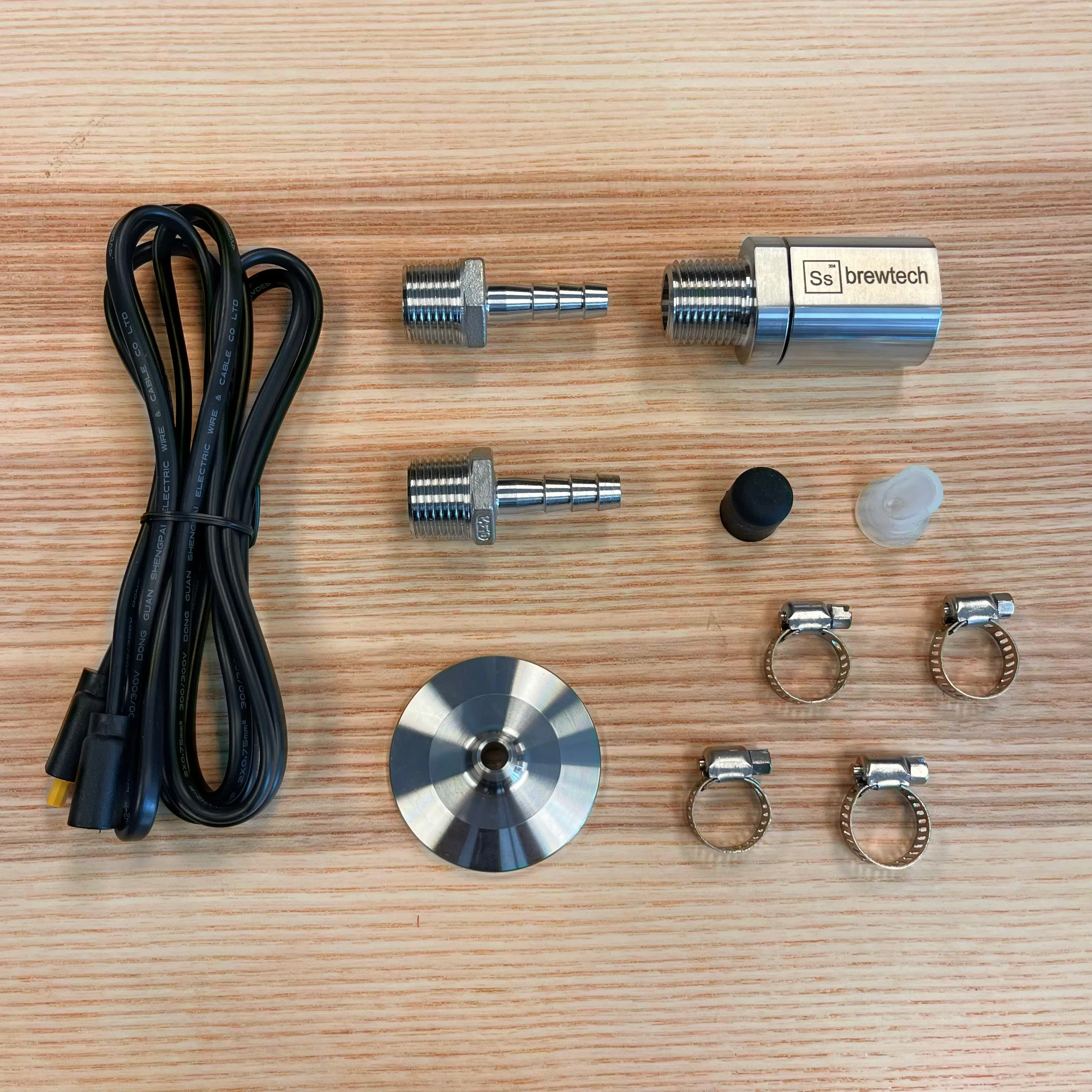

Includes:
(4) FTSs hose clamp for 3/8" barbs
(1) Hose barb - 3/8" to 1/2" MPT
(1) Silicone thermowell cover
(1) 1.5" TC sleeved thermowell adapter
(1) FTSs harness extension 3 ft
(1) Silicone check valve
Works with 1, 2, and 3.5 bbl Nano Jacketed Tanks
Not required for
