The ST-LH6 is required if you want to cool a CPU up to 105W. It does this by utilizing two of the DB4's side panels.

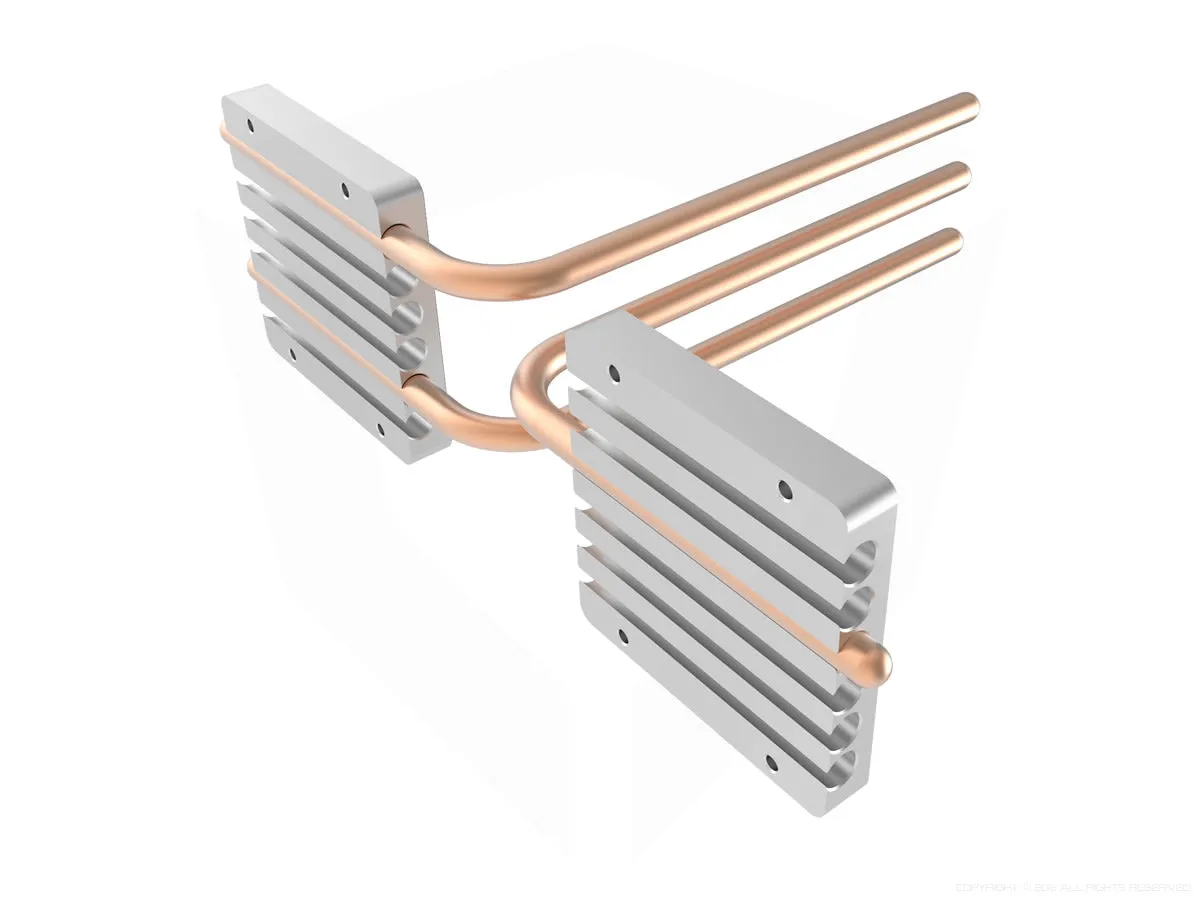

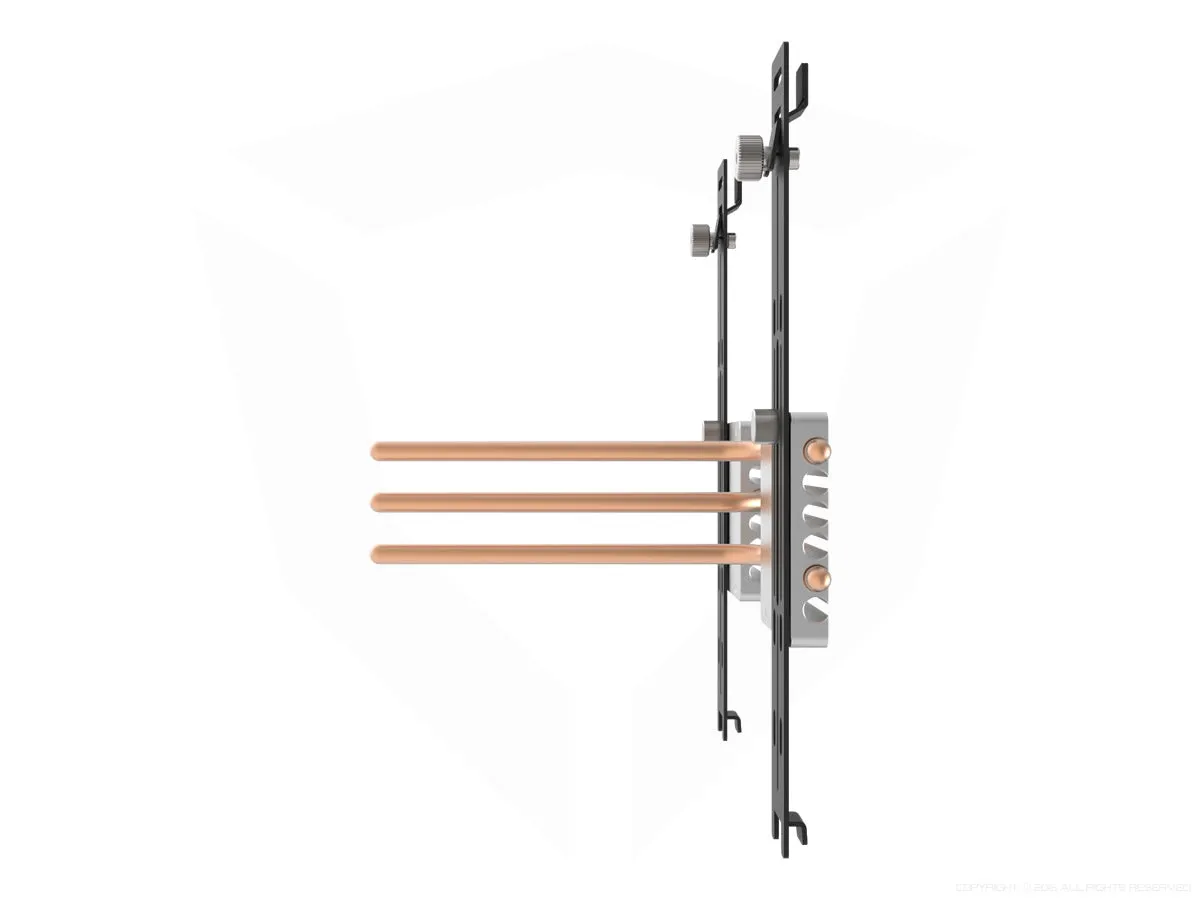

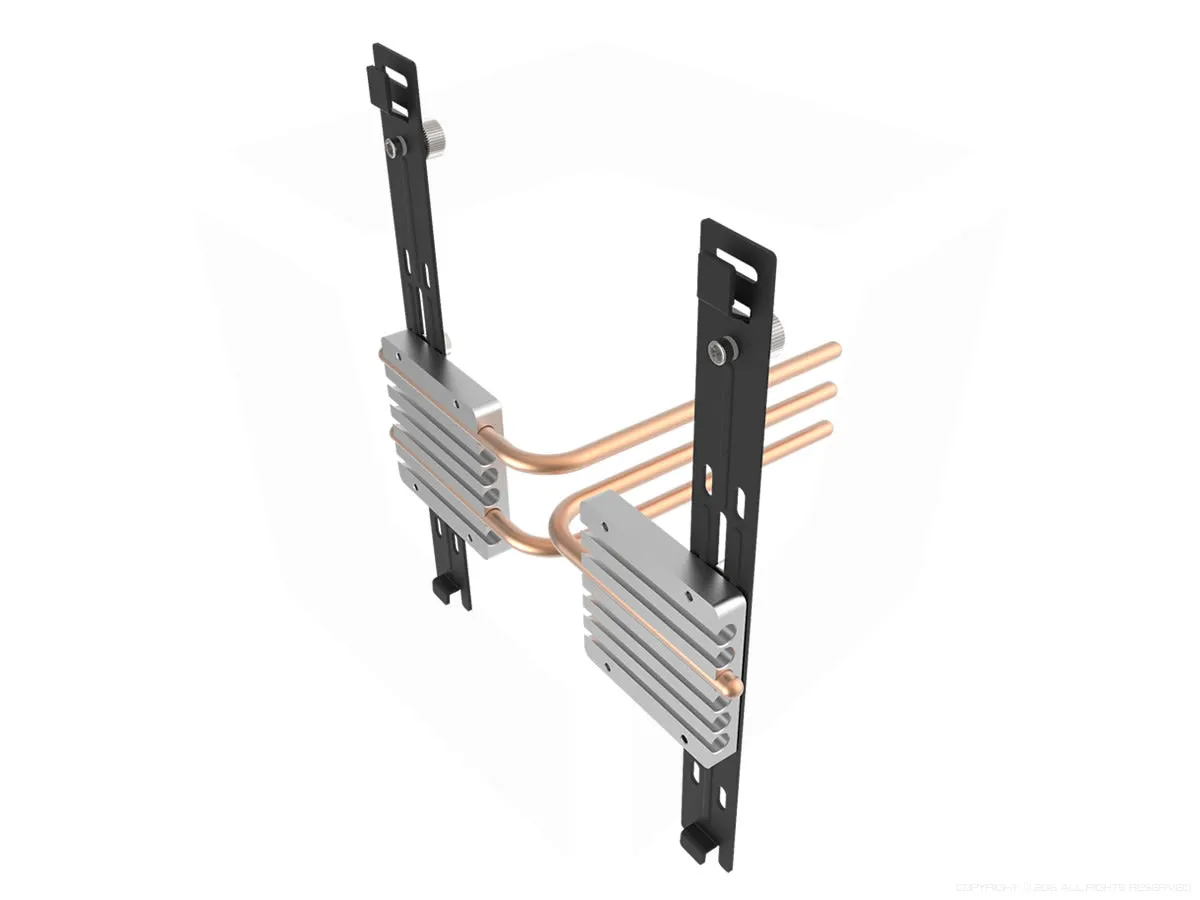

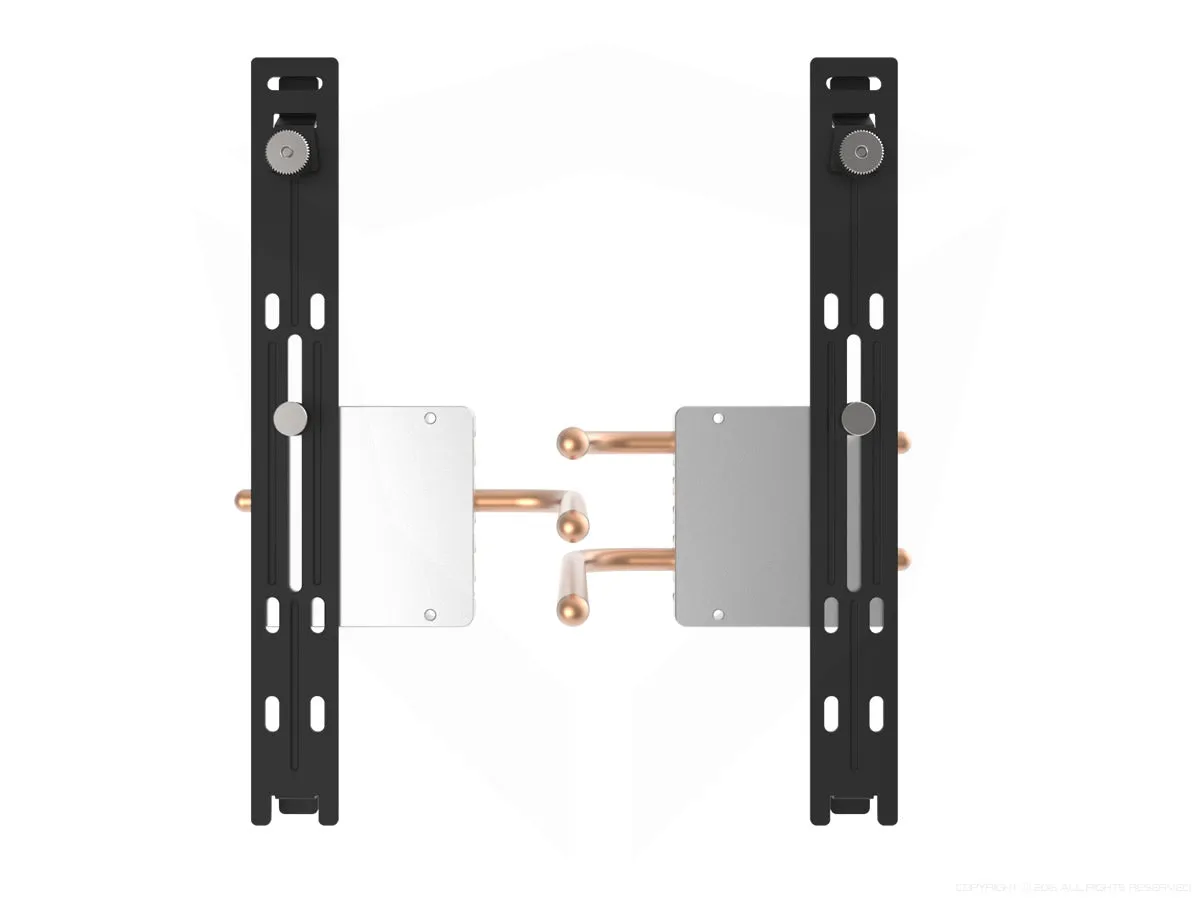

The LH6 Kit for the DB4 chassis was designed to expand the CPU cooling from a single side panel to two side panels. It comprises of heat pipes, heatsink connectors, universal brackets and thermal pads/paste. When assembled correctly with the appropriate environmental conditions, the total cooling performance can reach 105W of heat dissipation. While the stock DB4 heat pipes have been designed to work with virtually any motherboard layout, the LH6 will require a compatible CPU location and motherboard.
| Technical Specifications | |
|---|---|
| Number of Heatpipes | 3 |
| Heatsink Mounts | 2 |
| Universal Brackets | 2 |
| Heatpipe Diameter | 6mm |
| Heatpipe Length | 117mm |
| Compatible Chassis | DB4 |
| Material | Copper |
Features
- Expand the CPU DB4 cooling from a single side panel to two side panels.
- Can be used as general-purpose heatpipes for custom modding.
- Supplied as a kit of four heatpipes pre-formed into the correct shapes.
*Please note: The STLH6 is no longer supplied with thermal pads. The kit is now suppied with two tubes of ICE 5 Premium Thermal Paste which provides significantly increased and superior performance.
