Product Details
＋
SPECIFICATIONS

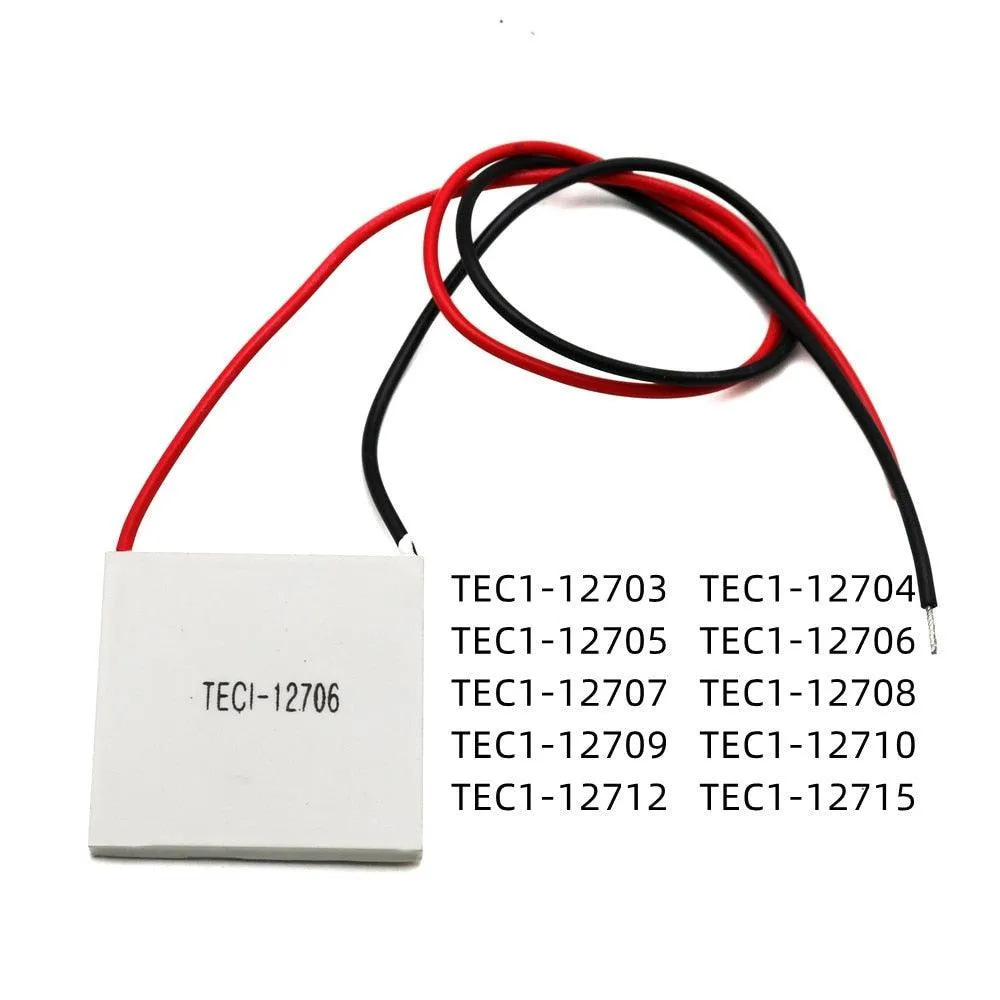

TEC1-12706 12703 12704 12705 12708 12709 12710 12712 12715 Thermoelectric Cooler Peltier 40*40MM 12V Peltier Elemente Module
model9: TEC1-12712
model8: TEC1-12710
model7: TEC1-12709
model6: TEC1-12708
model5: TEC1-12707
model4: TEC1-12706
model3: TEC1-12705
model2: TEC1-12704
model10: TEC1-12715
model1: TEC1-12703
Weight: 2.15g
Type: Voltage Regulator
Output Type: 12V 6A
Operating Temperature: -55℃-83℃
Model Number: TEC1-12707
Condition: New

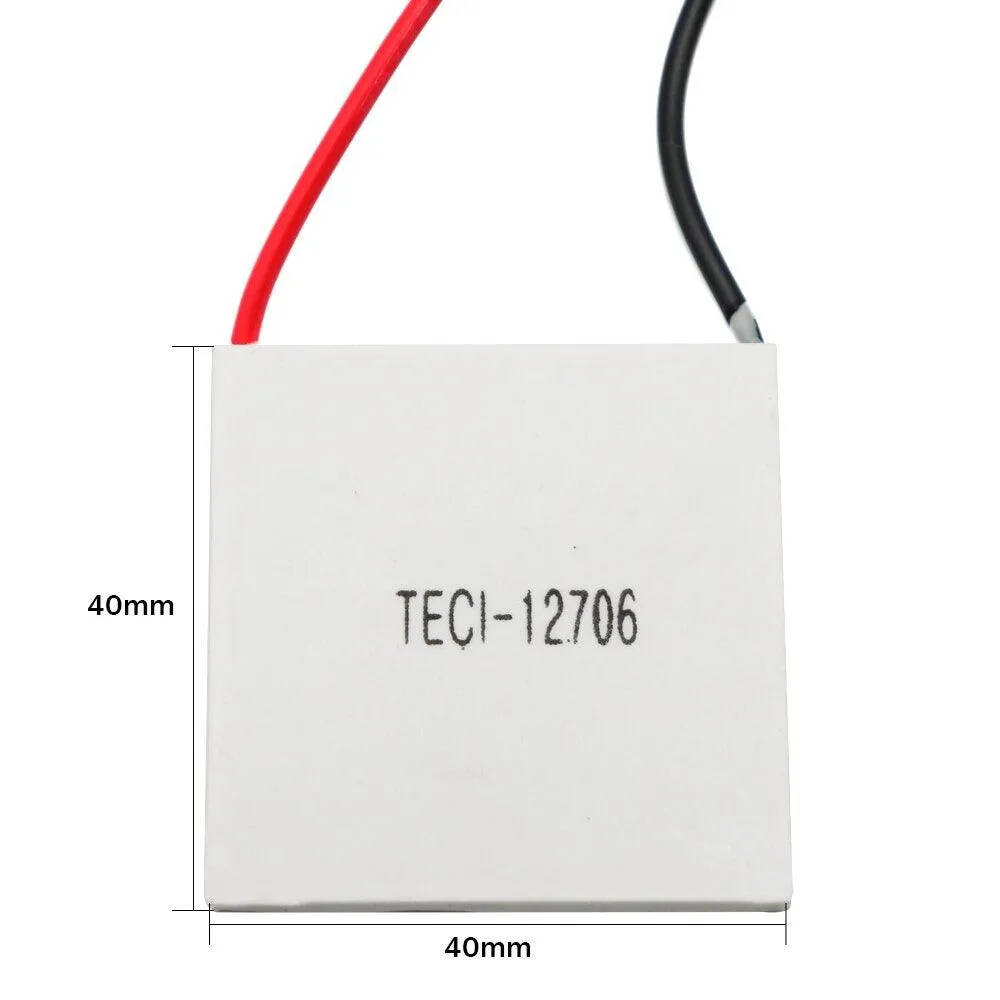

External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59 'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)
Description :
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads
