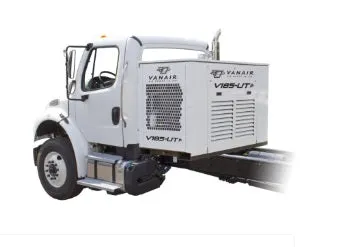

Vanair 052024 V185-UT Utility Mount Air Compressor

Tier 4 Final-Compliant Utility Mount Air Compressor

Vanair is pleased to offer our customers an industry-leading V185-UT Utility Mount Air Compressor that is a Tier 4 Final-compliant engine driven, utility mount, rotary screw air compressor in 185 CFM at 100 PSI. This stand-alone machine, which is typically cross-mounted along the bulkhead of the vehicle’s body, is equipped with a waterproof eye level, curbside digital control panel for easy accessibility. The corrosion resistant canopy has fork pockets and a balanced single point lifting bail for easy installation and removal

Features:

Curbside Serviceability
Large, 108mm Diameter Twin Screw Air End (127mm for V260-UT)
Automatic 0 to 100% Capacity Control
Two Stage Dry Type Air Filter – External Access
Two 3/4” Service Connections
Oil Level Sight Gauge
Isuzu Engine
Steel Fuel Tank
Side by Side Coolers for Compressor and Engine
Compact Size for Truck Mounting
Curbside Fuel Fill & Air Filter Access
Noise Level Limited to Maximum of 76 dBA at 7 Meters
All Drains End Mounted
Automatic Shutdown and Protection System
Automatic Blowdown Valve
Unloaded Starting

Specifications:

Rated Delivery (CFM) | 185
Rated Operating Pressure (PSI) | 100
Fuel Capacity (gal.) | 30
Engine (HP) | 49
Dimensions (In.) | 80L x 36W x 57.36H
Dry Weight (Lbs.) | 2,340

PLEASE NOTE, IMPORTANT INFORMATION:

This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
